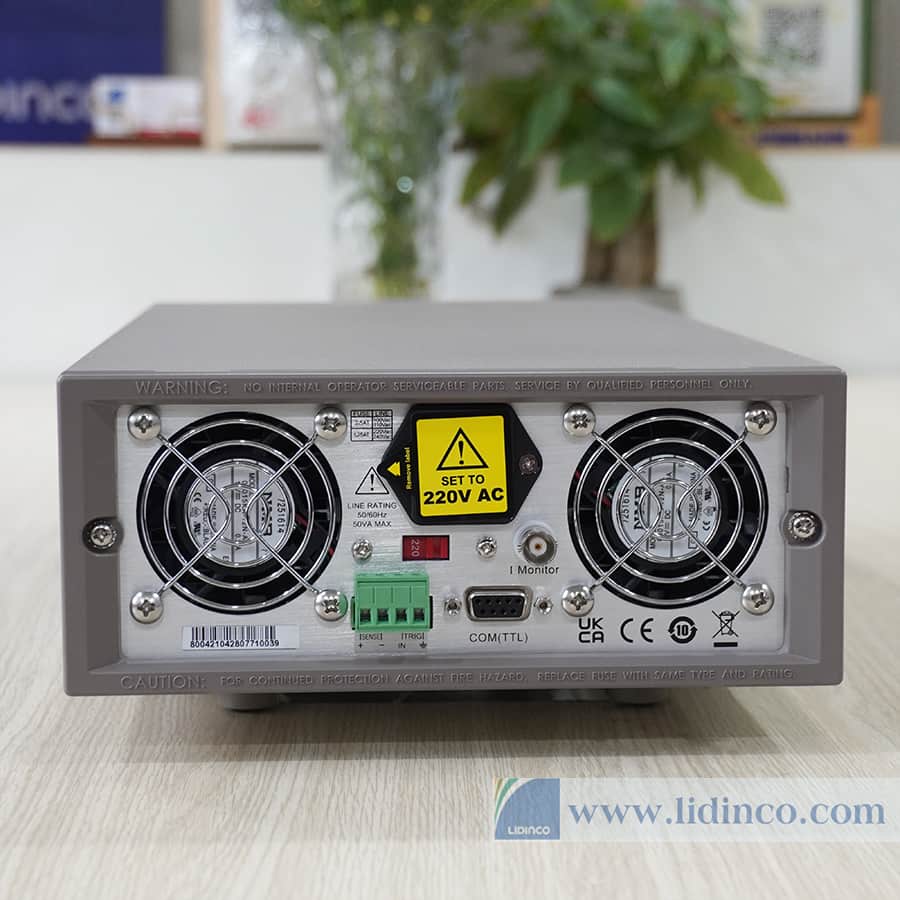

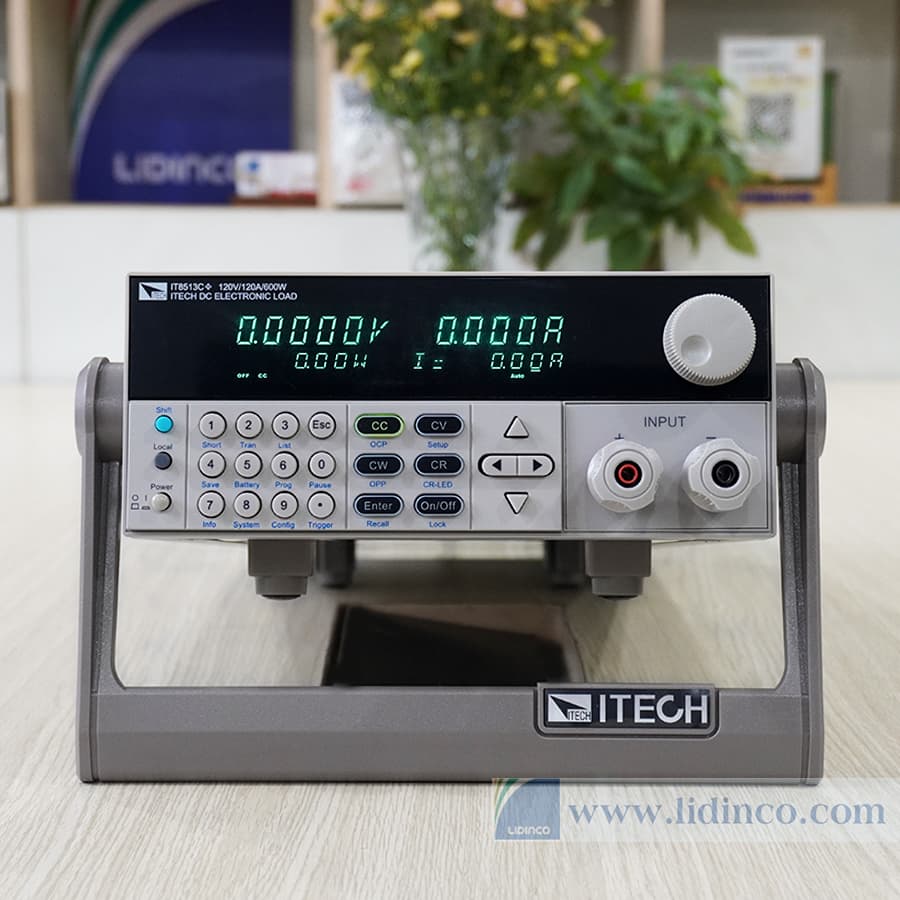

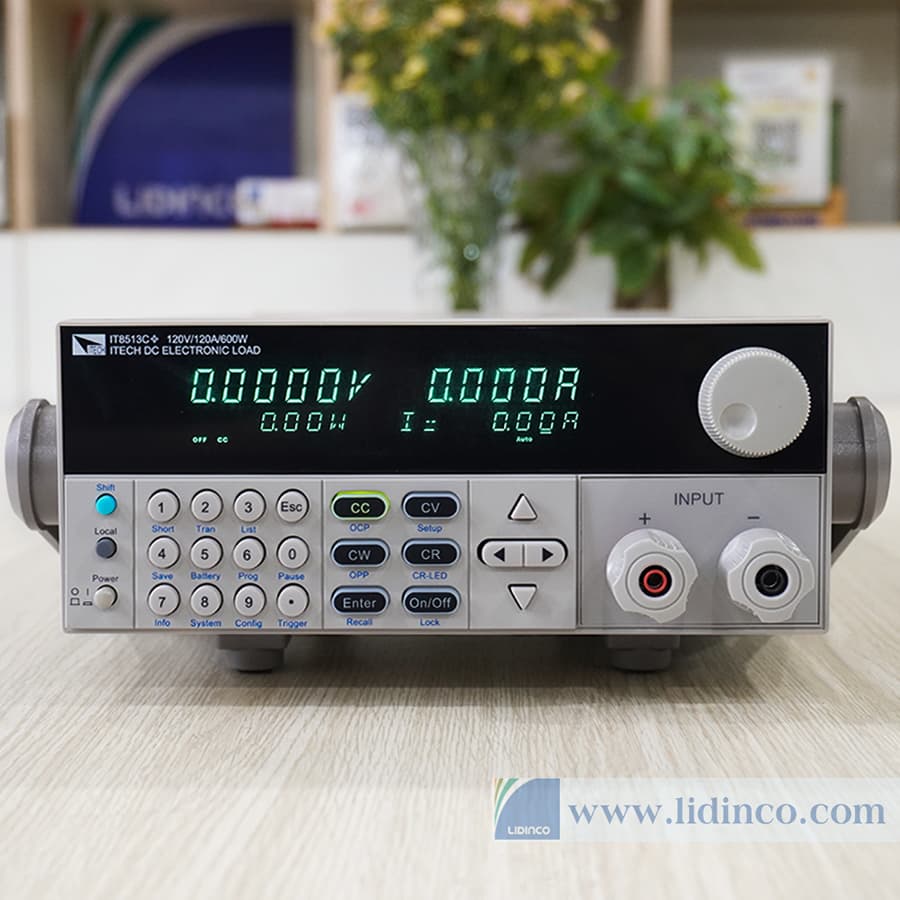

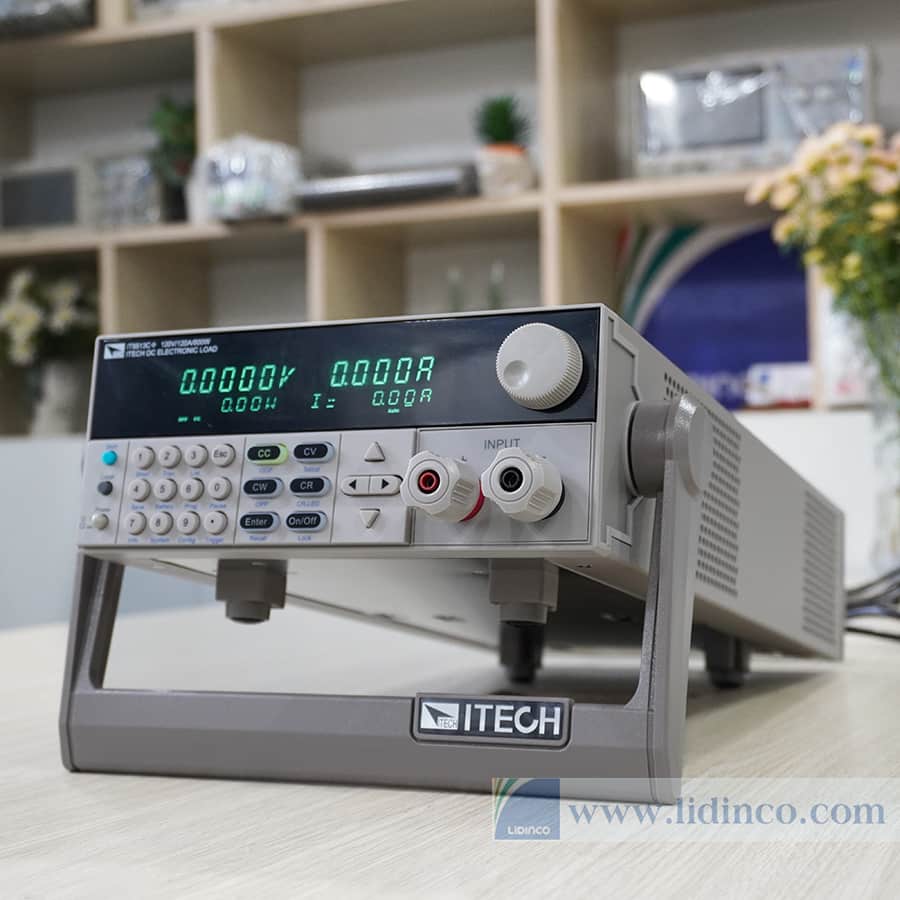

Tải điện tử DC lập trình Itech IT8513C+ 0~120V/120A

IT8500+series (150W~3000W) single-channel programmable DC electronic loads are designed for middle & high-end applications.They can be offered as multiple solutions according to customer’s design and testing requirements.The user can perform online voltage measurements and adjustments or simulate short circuit test using the simple keypad on the front panel. IT8500+ series DC loads are a versatile instrument for static and dynamic testing of power supplies,batteries,DC – DC converters,battery chargers,provides user the best testing solution.

Features

♦ Four operating modes: CV,CC,CR,CP
♦ Battery test function, automatic test function, OPP test, OCP test function and CR-LED function.
♦ Dynamic mode up to 10KHz
♦ Voltage measurement resolution up to 0.1mV / 0.1mA
♦ Remote sense
♦ Short circuit function
♦ Current monitoring function
♦ Power-off memory function
♦ 100 groups memory capacity
♦ Optional USB / RS232 / RS485 interface

* IT8514B+, IT8514C+ and IT8516C+ have built-in RS232 and USB interfaces.
