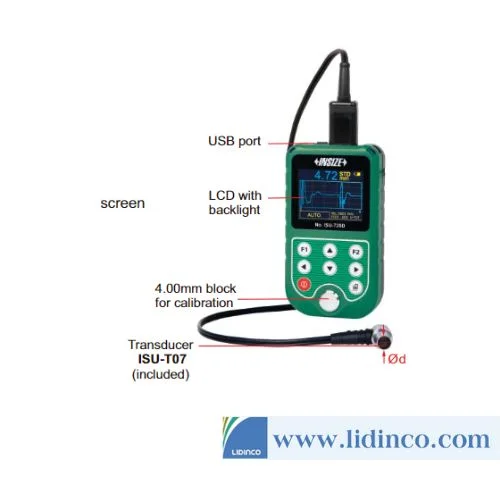

Ultrasonic Thickness gage Insize ISU-720D

Feature

Ultrasonic Thickness gage Insize ISU-720D:

• Two measuring modes, Echo-Echo (E-E) and Transmit-Echo (T-E):

– E-E is applicable for non-metallic coating (such as paint, plastic resin, etc) on metal substrates, can penetrate coating and measure the thickness of substrates

– T-E is to measure the thickness of material without coating, such as metal, plastic, glass, nylon, resin, ceramics, ice, etc,

• A scan, through the waveform, judges whether there are impurities, pores, crasks and so on inside, in order to avoid wrong measurement
• B scan, measures continuously, displays the thickness change on the screen
• Transducers can be automatically identified and zeroed
• Memory 1000 measurement values
• Data can be input to excel and word as keyboard signal
• Automatic or manual measurement
• When transducers are removed from workpieces, the measurement data are held on screen for easy viewing
• Set upper and lower limits for alarm when out-of-tolerance
• Automatic power off
