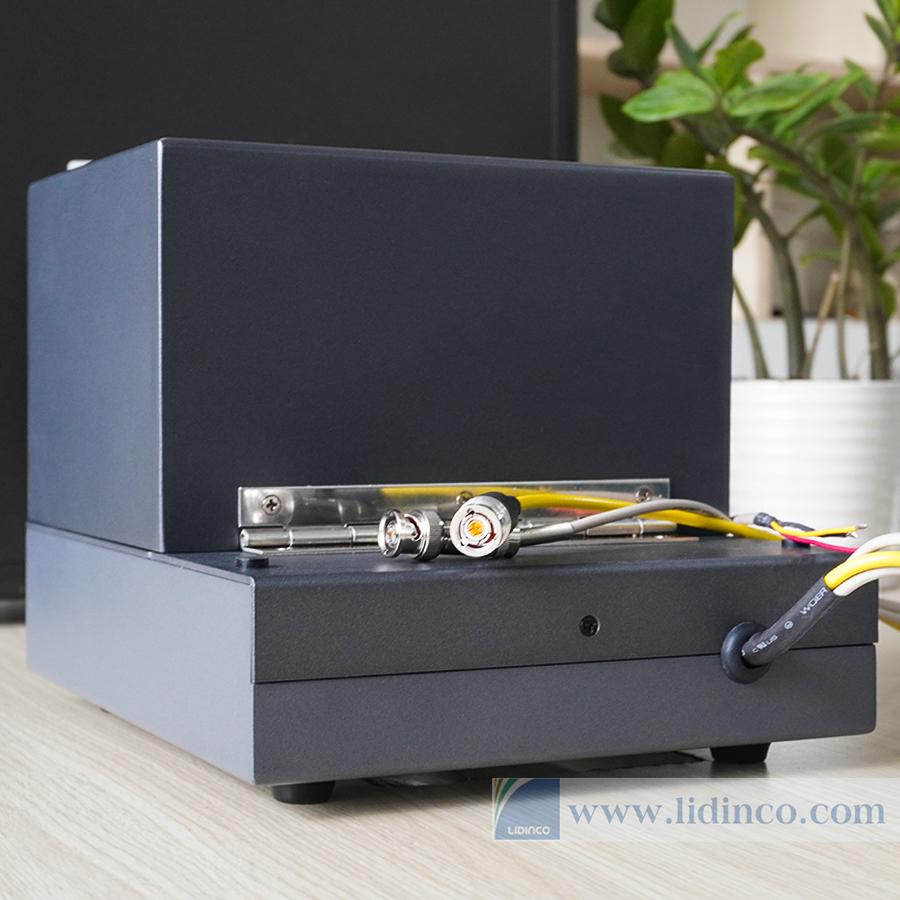

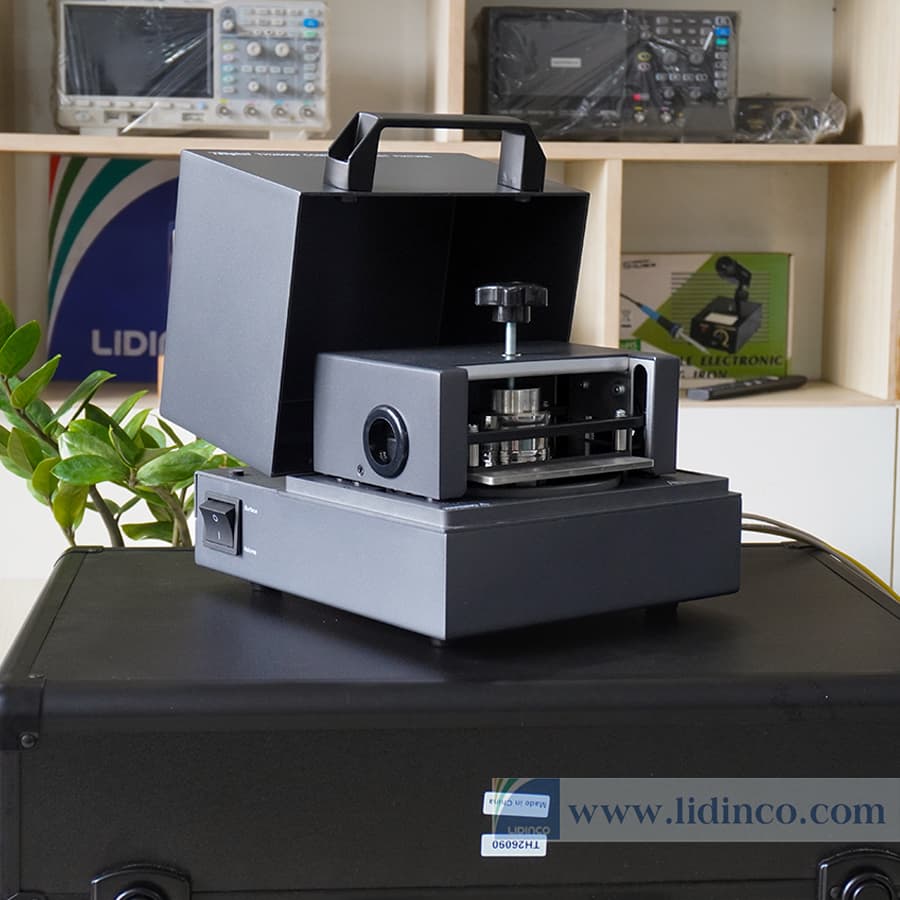

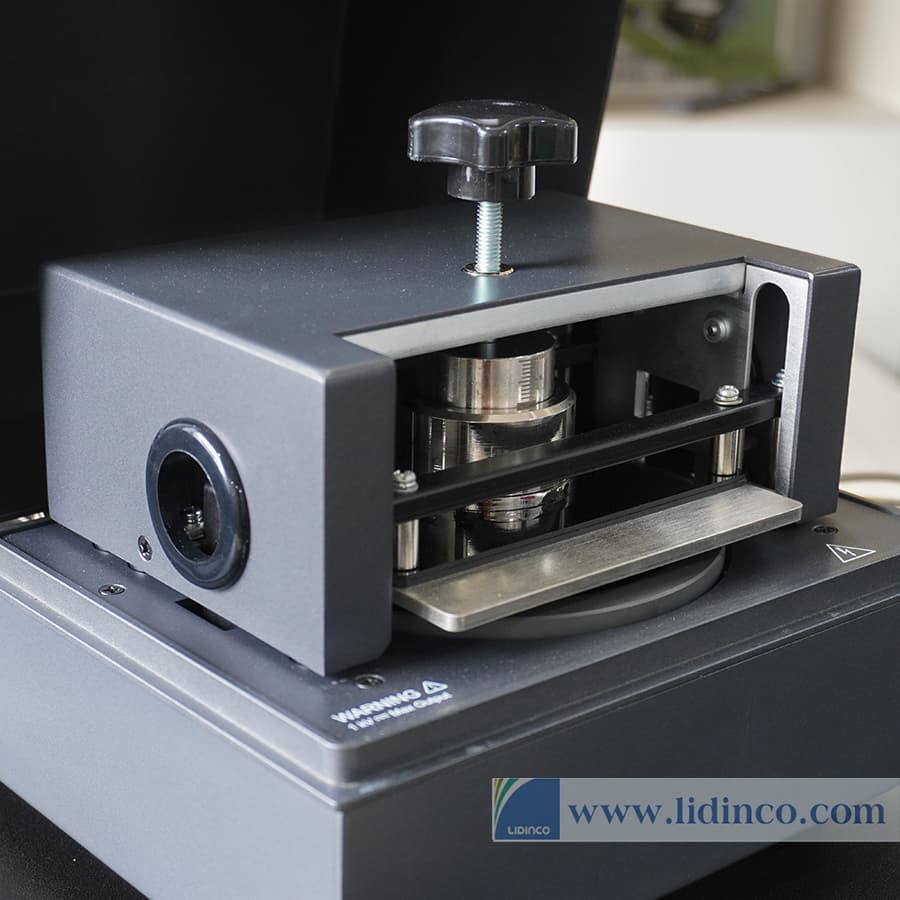

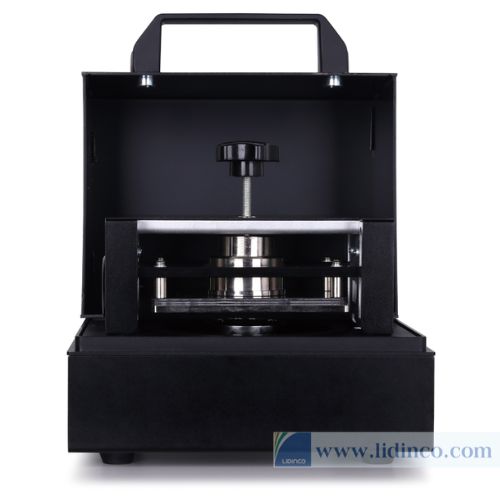

Surface Resistivity/Volume Resistivity Test Fixture TongHui TH26090

Surface Resistivity/Volume Resistivity Test Fixture TongHui TH26090

Thông tin sản phẩm

Manufacturer: TongHui
Model: TH26090
Warranty: 12 months

Thông tin khuyến mãi

Sản phẩm tạm thời chưa có khuyến mãi!

Yêu cầu báo giá

Category: Source Measure Unit

Easy to buy

Variety mode of payment

Free shipping

For orders from 3,000,000 VND

Support 24/7

Even outside working hour

Contact Ho Chi Minh City

Tel: (028).3977.8269 / 0906.988.447

Email: sales@lidinco.com

Contact Bac Ninh, Ha Noi City

Tel: (0222).730.0180

Email: bn@lidinco.com

Other Contact:

Description

Introduction

The TH26090 is an accessory for the TH2690 electrometer/high resistance meter/femtoammeter/picoammeter, used to measure the volume or surface resistance/resistivity of insulating materials. The TH26090 has the following features:

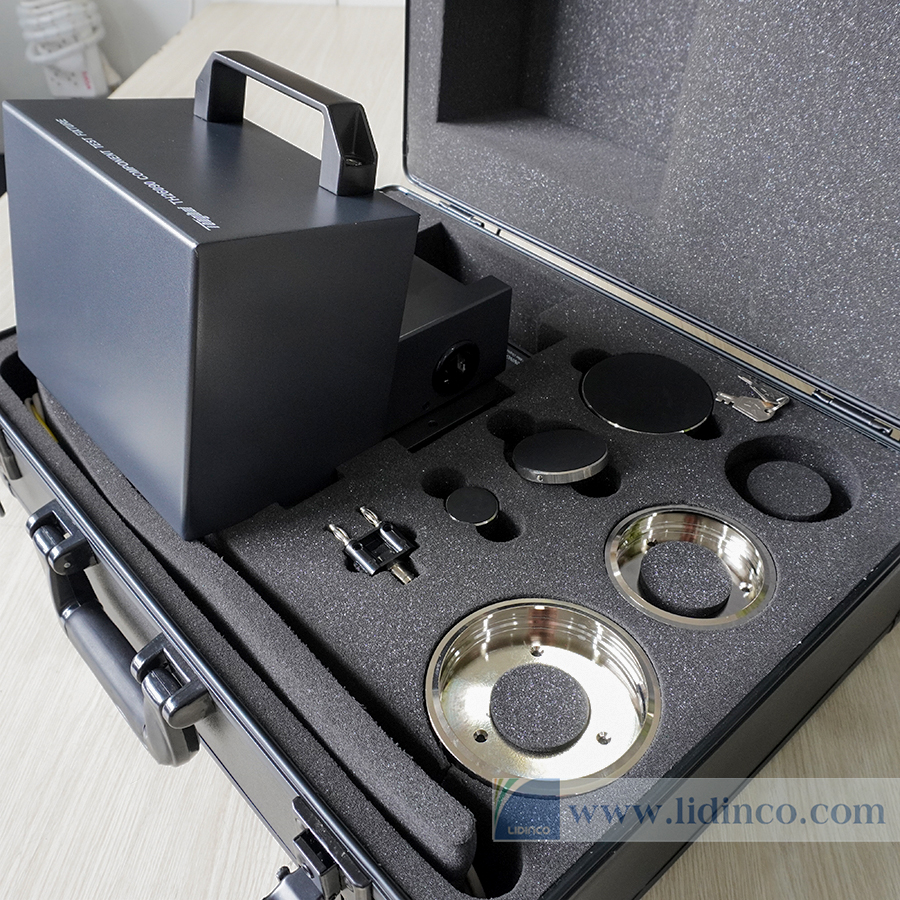

1. Electrode size optional; three different sizes of electrodes to meet your DUT size requirements and meet the electrode size requirements of different standards.

2. Can be used in environments of 30℃~100℃.

3. Any contact pressure can be applied to the DUT.

4. Applicable test voltage: 1000V.

5. Applicable test current: 10mA.

Xem thêm

Thông số kỹ thuật

Measurement parameters: Volume resistance/resistivity, surface resistance/resistivity

Applicable test voltage: Maximum 1000V

Applicable test current: Maximum 20mA

Applicable instruments: TH2690/TH2690A/TH2690H

Interlock circuit: Equipped

Operating temperature: $-30$ $\circ$ $C$ to $100$ $\circ$ $C$ (Connector: $0$ $\circ$ $C$ to $55$ $\circ$ $C$ )

Operating humidity: $\leq$ $70%$ RH ( $@$ $40$ $\circ$ $C$ )

Storage temperature: $-40$ $\circ$ $C$ to $70$ $\circ$ $C$

Storage humidity: $\leq$ $95%$ RH ( $@$ $40$ $\circ$ $C$ )

Cable length: 1.2m

Weight: 7kg
