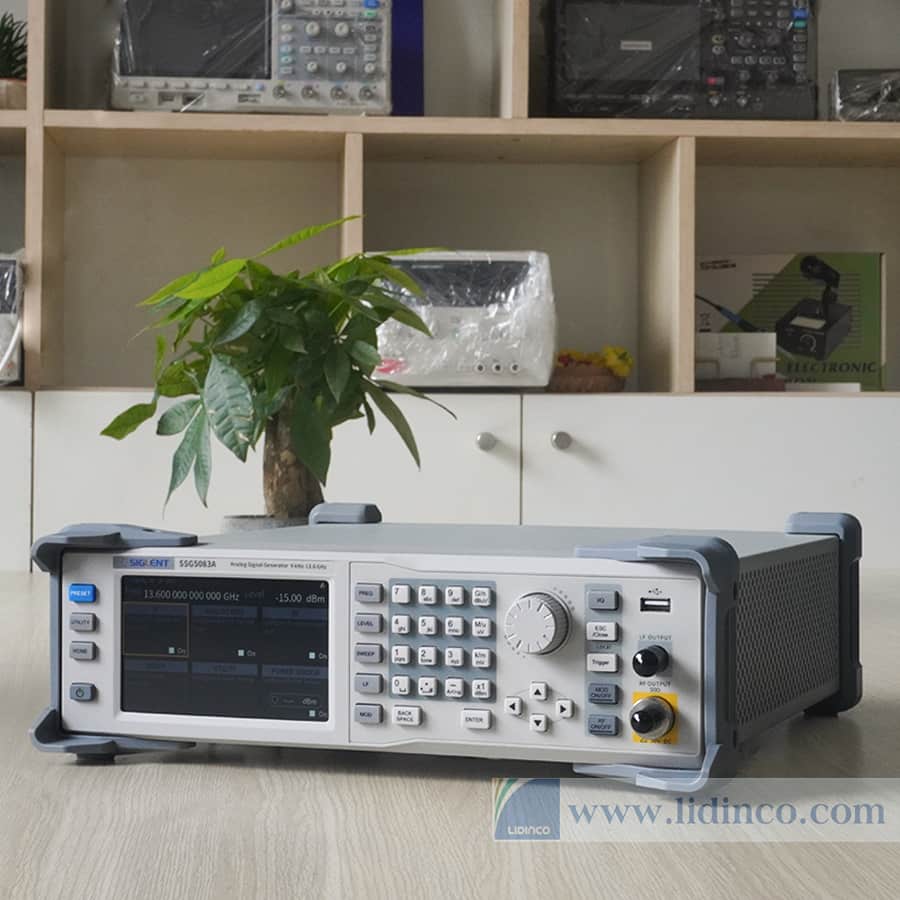

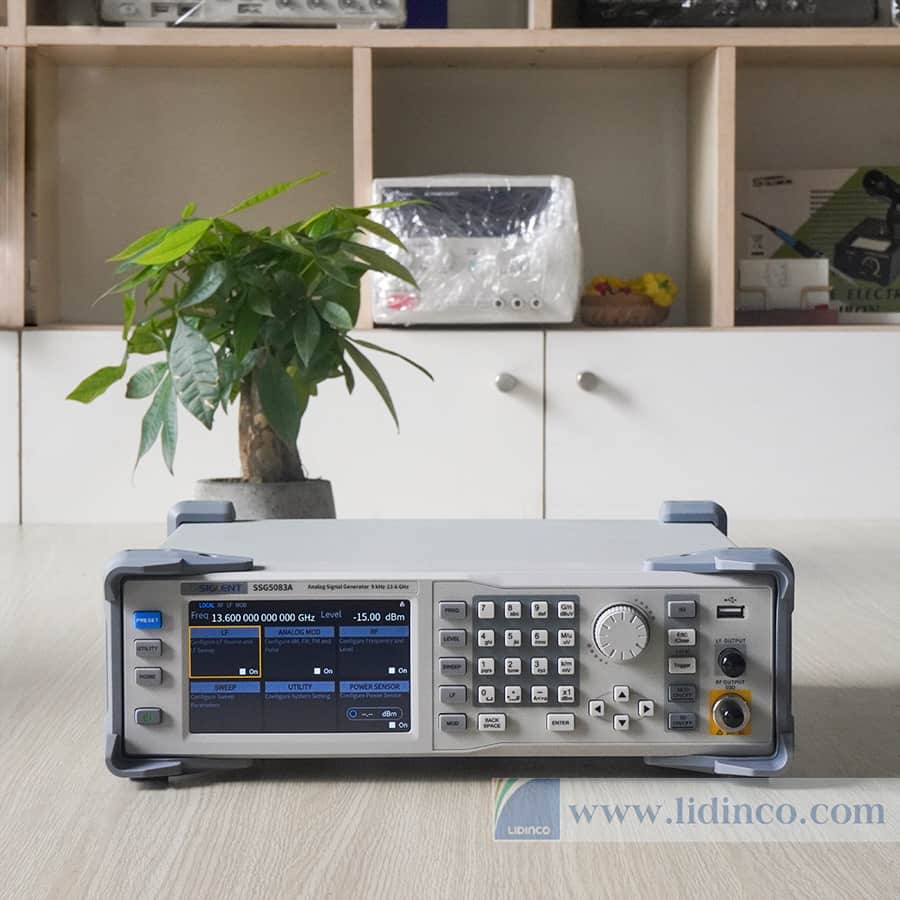

RF Signal Generator Siglent SSG5083A

Main Features

• Frequency up to 13.6 GHz
• 0.001 Hz frequency setting resolution
• Level setting range: -130 dBm ~ 25 dBm
• Phase Noise: -120 dBc / Hz @ 1 GHz, 20 kHz offset (typ.)
• Level error ≤ 0.7 dB (typ.)
• Provides AM, FM, PM analog modulation with internal, external or Int+Ext source
• Single pulse, double pulse and pulse train generator (opt.)

Wide-ranging application

SSG5083A/SSG5085A microwave signal generator’s output frequency range from 9 kHz to 13.6/20 GHz, supports AM & FM & PM modulation, pulse modulation, pulse sequence generator, power meter control and other functions. With standard OCXO reference hardware module inside ensures high precision and high stability signal output. It is designed for communication, aerospace, national defense and other fields. And it is suitable for various application scenarios such as R&D and production.

Pulse generator

Standard pulse generator function, with a minimum pulse width of 20 ns. The optional pulse train generator function can simulate complex pulse scenes, and the number of pulses is 1-2047.
