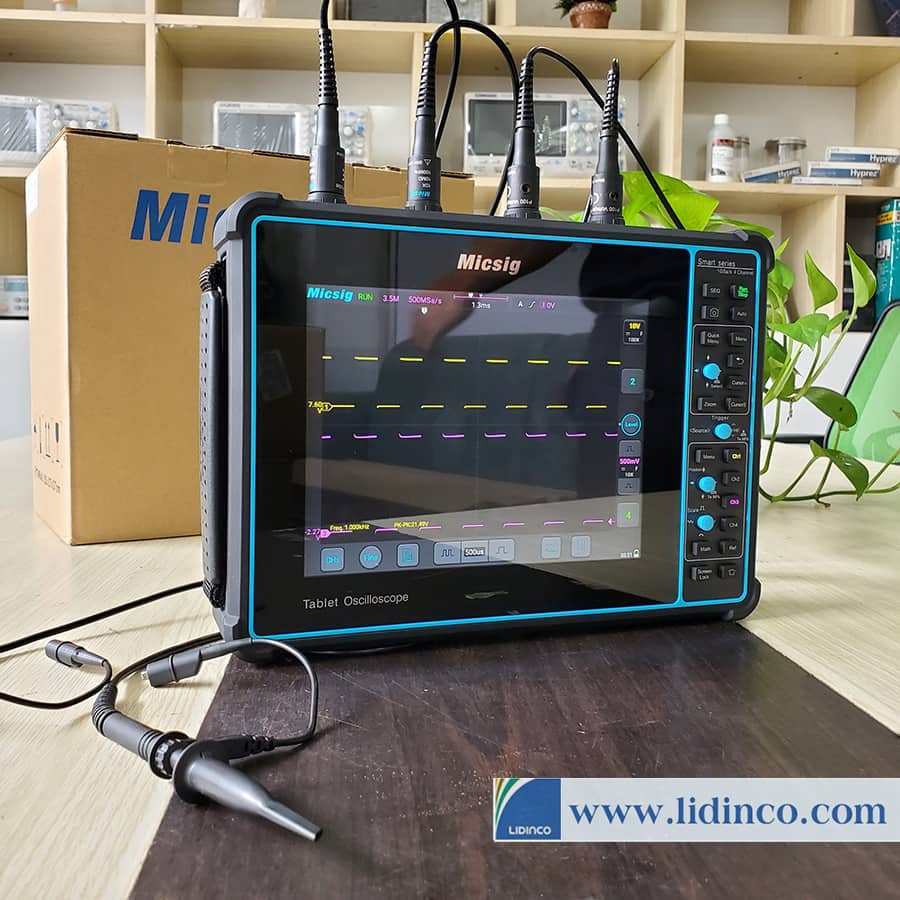

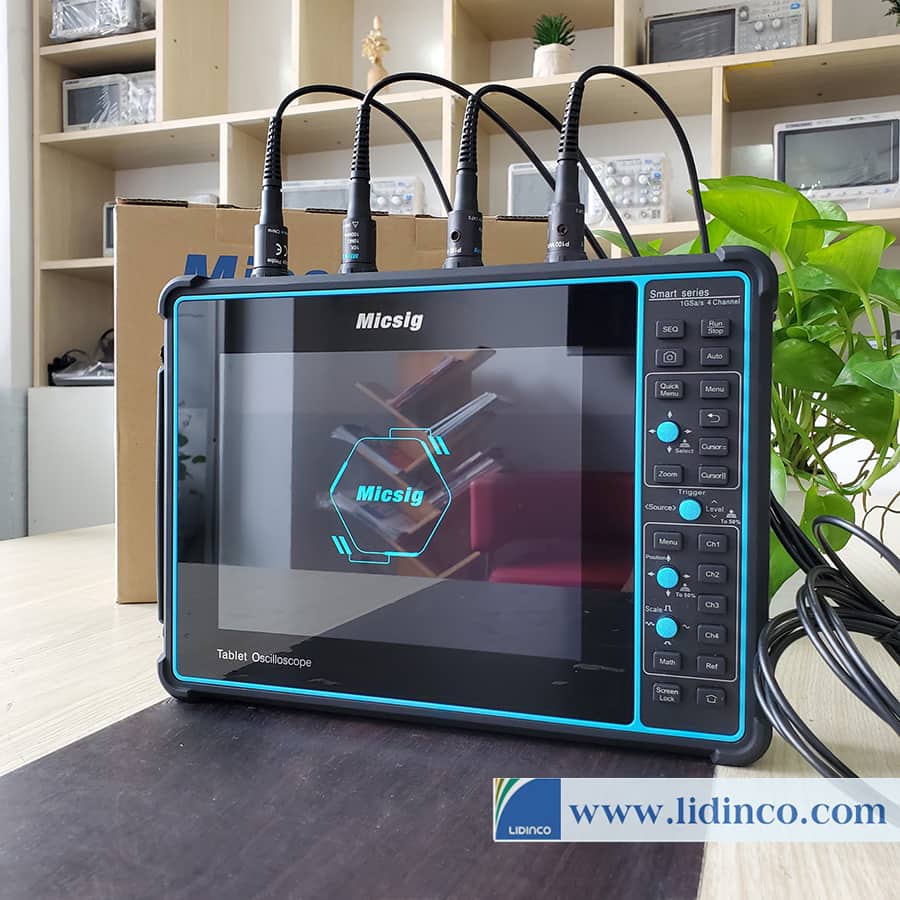

Automotive Oscilloscope Micsig SATO1004, 100MHz, 4 CH

Features

Unparalleled Operating Experience
8-inch TFT-LCD capacitive touch screen with 800 * 600 resolution, interagtes a new generation of hardware & software technologies

Professional Performance
High bandwidth, High sampling rate, Large memory depth, excellent signal capture performance

Portable & Benchtop
Built-in 7500mAh Li-ion battery support 5h long field work;
Power-off lock secure safety to carry and store;
Triangle link rear stand make sure it sits on the bench solidly

Charging / Start Circuit Tests
Support 12V & 24V charging/start, Charging Ripple, Cranking Current and other tests

Various Sensor Tests
Supports testing of ABS, Accelerator Pedal, Throttle Position, Fuel Pressure, Air Flow meter, Crankshaft, Camshaft, Knock, MAP, etc.

Actuators
One-press to get signals, Fast and Easy.
Support various Actuator tests: multiple fuel injector voltages and currents, fan control signals, variable valve timing, carbon canister solenoid valves, EGR solenoid valves, etc.

Ignition
Including Primary ignition, Secondary ignition, and combined Primary+Secondary ignition tests.

Network
CAN (CAN High / CAN Low), CAN FD, LIN, FlexRay, and K line

Combination Tests
Multiple channels of oscilloscope can be measured together to perform a variety of combined tests, such as the combined test of the Crankshaft and the Camshaft, or the combined test of the Primary Ignition and the Fuel Injector Voltage, etc.

Multi-function Button Panel
Highly integrated multifunctional buttons, innovative 5-Way navigation sticks, deliver quick & accurate control to various operations.

Upgraded 32GB Internal Storage
Allow users to store and access mass files, such as Waveforms, Screenshots and Recorded Videos.

Smart Connections
PC software + Mobile phone App (Android / iOS) remote control via Wi-Fi, USB; Able to access internet for online upgrade; Can be projected via HDMI port for demonstrations for training and education purpose.
