Fluke 1AC II

Product information

Manufacturer: Fluke
Model: 1AC II
Warranty: 12 months

Thông tin khuyến mãi

Sản phẩm tạm thời chưa có khuyến mãi!

Yêu cầu báo giá

Category: Non-Contact Electric Tester

Easy to buy

Variety mode of payment

Free shipping

For orders from 3,000,000 VND

Support 24/7

Even outside working hour

Contact Ho Chi Minh City

Tel: (028).3977.8269 / 0906.988.447

Email: sales@lidinco.com

Contact Bac Ninh, Ha Noi City

Tel: (0222).730.0180

Email: bn@lidinco.com

Other Contact:

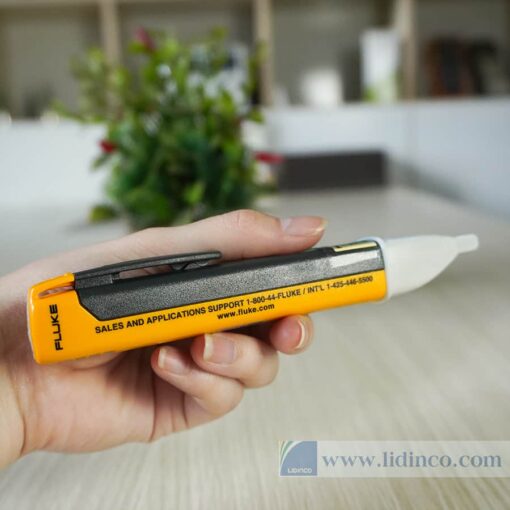

The pocket-sized voltage detector

The portable 1AC II non-contact voltage tester from Fluke are easy to use – just touch the tip to a terminal strip, outlet, or supply cord. When the tip glows red and the unit beeps, you know there’s voltage present. Electricians, maintenance, service, safety personnel, and homeowners can quickly test for energized circuits in the workplace or at home and even detect miswires of an electrical outlet.

Key features

Be aware of voltage easily – the tip glows red and a beeper sounds when voltage is detected
Continuous self-test so you always know it’s working
Voltage detection range for wide application use – 90 V to 1000 V AC or 200 V to 1000 V AC
Audible/Silent mode for added convenience

Safety features

Rated to CAT IV 1000 V for added protection
CE and CSA approved

Additional tool features

Audible/Silent mode for added convenience in quiet environments
On/Off button
Batteries included
2 year warranty

Specifications
Operating Principles	Senses the steady state electrostatic ﬁeld produced by AC voltage through insulation without requiring contact to the bare conductor. A red glow at the tip and a beeping noise (if not switched OFF) indicates the presence of voltage.
Voltage sensing ranges	Nominally, 90 V AC to 1000 V AC
Detector tip style	Flat-tip
Light source	One high intensity red LED
Agency Approvals	‍‍‍
Safety	IEC 61010-1: Pollution Degree 2, IEC 61010-2-030: CAT IV 1000 V
EMC	IEC 61326-1: Portable
IP Rating	IP 40
Operating Temperature	-10°C to 50°C (-14°F to 122°F)
Operating Humidity Ranges	0% to 95% (0°C to 30°C)
	0% to 75% (30°C to 40°C)
	0% to 45% (40 to 55°C)
Operating Altitude	3000 m
Cleaning	Clean with damp cloth
Batteries	2 AAA alkaline batteries included
Battery Life	Typical battery life of greater than 1 year
Warranty Period	Two years
Product does not respond to random electrostatic discharge.
