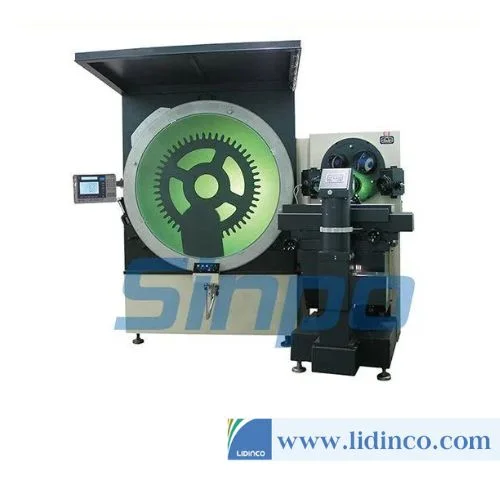

This CNC horizontal contour projector is with horizontal light path to show workpiece contour to a 1200mm diameter screen, with 100kg load capacity it can measure big parts, full automatic control makes measurement easy and funny. Versatile accessories and fixtures to satisfy different measurement applications.
Projection screen
Screen diameter: 1200mm
Rotate range: 0°~360°
Rotation division value of projection screen: 1°
Resolution of the rotary angle: 1′
Objective
| Magnification | 10X | 20X | 50X | 100X |
| Object Visual Field | φ120mm | φ60mm | φ24mm | φ12mm |
| Object Working Distance | 300mm | 195mm | 120mm | 50mm |
Magnification error: ≤0.06%
This CNC horizontal contour projector is specialized designed for big size components, CNC mode realize easy operation to save time and labor. It can display completely contour in one image on 1200mm screen to enhance measurement efficiency. The worktable with deflection of ±15° makes measurement on shaft possible and more convenient.
