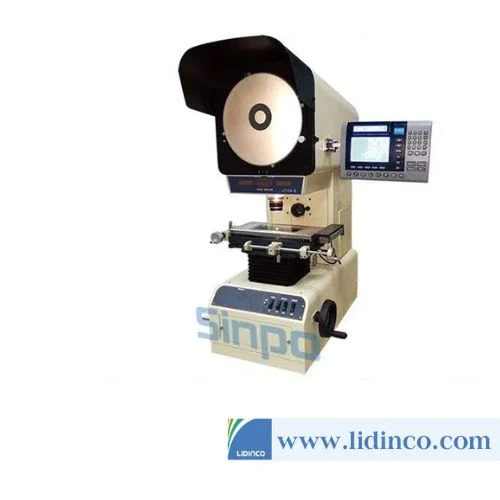

300 Digital Profile Projector Sinpo JT12A-B

Description

This 300 digital profile projector is very clear image, accurate magnification, easy to carry out comparative measurement. Equipped non-spherical condenser lighting system, so the visual field of the screen is bright and even to reduce measurement errors.

Feature

This 300 digital profile projector is the most popular model which can carry out almost all daily checking and inspections for workshops and plants. Equipped with DS600 digital read out, it’s easy to operate and get results by printer.

Product Parameter

Projection screen

Screen diameter: 300mm

Rotate range: 0°~360°

Display equivalent of the rotate angle: 1′

Accuracy of rotate angle: 6′

Objective

Magnification error:≤0.08%

Worktable

• Worktable Area: (340×152)mm
• X travel: 0-150mm, resolution: 0.001mm
• Y travel:0-50mm,  resolution: 0.001mm
• Z travel:0-90mm (Focusing direction)
• Accuracy of the instrument: (3+L/75)μm, L is the measured length in mm
• Load capacity of the worktable: 3KG
• Transmission light: 12V 100W halogen Tungsten lamp
• Reflecting light: 24V 150W halogen Tungsten lamp
• Overall dimension of the instrument (mm): 694×380×1058 (L×W×H)
• Mainframe weight: 180KG
• Power supply: AC 220V, 50HZ
• Working environment requirements
• Room temperature: 20℃±5℃
• Relative humidity: 40%-70%
